What are the types of temperature sensors?

Hey there! As a sensor supplier, I'm super stoked to dive into the world of temperature sensors with you. Temperature sensors are everywhere, from your home thermostat to high - tech industrial machinery. They play a crucial role in keeping things in check, making sure everything runs at the right temperature. So, let's take a look at the different types of temperature sensors out there.

Thermocouples

Thermocouples are one of the most widely used temperature sensors, and for good reason. They're tough, can handle a wide range of temperatures, and are pretty affordable. A thermocouple works based on the Seebeck effect. That's a fancy way of saying that when you join two different metals at two junctions and there's a temperature difference between those junctions, it creates a voltage. By measuring this voltage, you can figure out the temperature.

There are several types of thermocouples, like Type K, Type J, and Type T. Type K is super popular because it can measure temperatures from - 200°C to about 1350°C. It's used in all sorts of industrial applications, like in furnaces and heat - treating processes. Type J is good for lower temperature ranges, from 0°C to about 750°C, and is often found in food processing and some scientific equipment. Type T is great for even lower temperatures, down to - 200°C, and is used in cryogenic applications.

One of the big advantages of thermocouples is their durability. They can stand up to harsh environments, including high pressures and corrosive chemicals. But they're not perfect. They're not the most accurate sensors out there, and you need to be careful about calibration.

Resistance Temperature Detectors (RTDs)

RTDs are another common type of temperature sensor. They work on the principle that the electrical resistance of a metal changes with temperature. Usually, RTDs are made of platinum, but you can also find them made of nickel or copper.

Platinum RTDs are the gold standard (well, platinum standard, actually). They're really accurate, with an accuracy of up to ±0.1°C in some cases. They can measure temperatures from about - 200°C to 850°C. Because of their high accuracy, they're often used in applications where precise temperature measurement is crucial, like in pharmaceutical manufacturing and aerospace testing.

The main drawback of RTDs is that they're more expensive than thermocouples. Also, they're a bit more fragile and need to be handled with care. But if you need that extra level of accuracy, they're definitely worth the investment.

Thermistors

Thermistors are temperature - sensitive resistors. They come in two types: negative temperature coefficient (NTC) and positive temperature coefficient (PTC). NTC thermistors are the more common type. Their resistance decreases as the temperature increases. PTC thermistors, on the other hand, have a resistance that increases with temperature.

NTC thermistors are really sensitive to small changes in temperature. They're often used in applications like temperature control in consumer electronics, such as laptops and smartphones. They're also used in automotive applications, like in engine temperature sensors.

One of the great things about thermistors is their low cost. They're also small and easy to integrate into circuits. However, they have a relatively narrow temperature range compared to thermocouples and RTDs. And their accuracy can be affected by self - heating, which happens when current flows through the thermistor and generates heat.

Infrared Temperature Sensors

Infrared temperature sensors are pretty cool. They measure temperature without actually touching the object. Instead, they detect the infrared radiation emitted by the object. The amount of infrared radiation is related to the object's temperature.

These sensors are really useful in situations where you can't or don't want to make contact with the object. For example, they're used in food processing to measure the temperature of moving conveyor belts of food products. They're also used in medical applications, like taking a person's temperature with a non - contact thermometer.

Infrared sensors can measure temperature very quickly. But they can be affected by factors like the emissivity of the object (how well it emits infrared radiation) and the presence of other sources of infrared radiation in the environment.

Semiconductor - Based Temperature Sensors

Semiconductor - based temperature sensors are becoming more and more popular. They use the temperature - dependent properties of semiconductor materials to measure temperature. There are two main types: integrated circuit (IC) sensors and silicon bandgap sensors.

IC sensors are small, low - cost, and easy to use. They can be integrated directly into electronic circuits, making them ideal for consumer electronics and portable devices. They usually have a temperature range of about - 55°C to 150°C.

Silicon bandgap sensors are a bit more accurate. They work based on the temperature - dependent voltage across a silicon p - n junction. They're often used in applications where a moderate level of accuracy is needed, like in computer motherboards to monitor the temperature of the CPU.

Choosing the Right Temperature Sensor

So, how do you choose the right temperature sensor for your application? Well, it depends on a few things. First, think about the temperature range you need to measure. If you're dealing with really high temperatures, like in a steel mill, a thermocouple might be your best bet. If you need high accuracy for a laboratory experiment, an RTD could be the way to go.

Consider the environment. If it's a harsh, corrosive environment, a thermocouple might be more suitable because of its durability. If you're working in a clean, controlled environment like a semiconductor manufacturing facility, a semiconductor - based sensor could be a good choice.

Cost is also a factor. If you're on a tight budget, a thermistor or an IC sensor might be more affordable. But if you need the best accuracy and performance, you might have to shell out a bit more for an RTD or a high - end infrared sensor.

Our Sensor Offerings

At our company, we offer a wide range of temperature sensors to meet your needs. Whether you're looking for a rugged thermocouple for an industrial application or a precise RTD for a scientific experiment, we've got you covered.

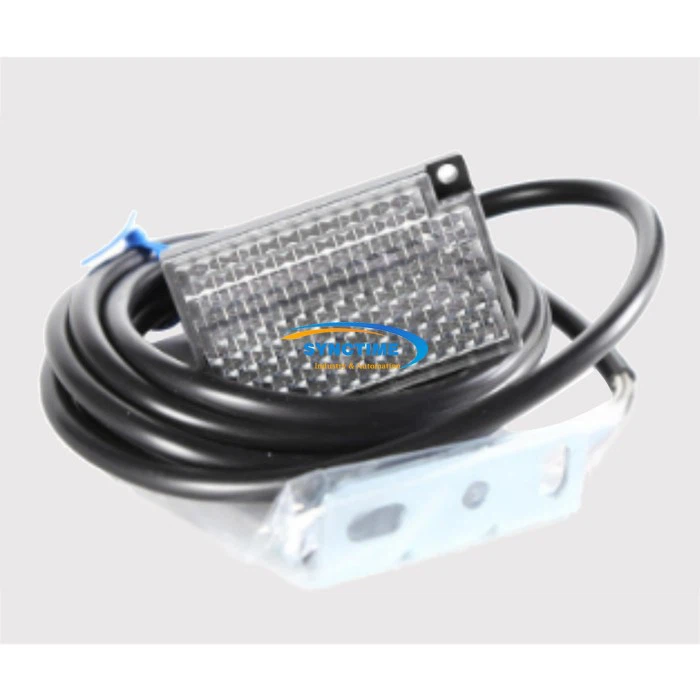

We also have some great sensors like the E3JK - RR11 - C 2M OMS Sensor, which is known for its reliability and performance. The E2B - M12KN08 - WZ - B1 Sensor is another great option, offering high accuracy in a compact design. And if you're looking for something specific, our 0J5136 Sensor might be just what you need.

Contact Us for Procurement

If you're interested in any of our temperature sensors or want to discuss your specific requirements, don't hesitate to reach out. We're here to help you find the perfect sensor for your application. Whether you're a small business or a large corporation, we can provide you with the right solution at a competitive price.
