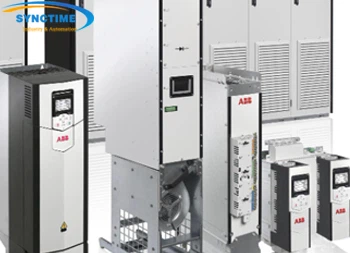

What Is An Industrial Variable Frequency Drive (VFD) And How Does It Work?



In the modern landscape of industrial automation, energy efficiency and precise process control are paramount. At the heart of this revolution lies the Variable Frequency Drive (VFD), often referred to as an inverter or adjustable speed drive. A VFD is a type of motor controller that drives an electric motor by varying the frequency and voltage of its power supply. While its primary function appears simple-controlling motor speed-its impact on industrial operations, ranging from HVAC systems to complex manufacturing lines, is profound. By matching motor speed to the actual load requirements, VFDs significantly reduce energy consumption, minimize mechanical stress, and enhance overall system reliability.

To understand the significance of a VFD, one must first recognize the limitation of standard AC motors. Traditionally, an AC induction motor connected directly to the power grid runs at a fixed speed determined by the frequency of the electrical supply (typically 50 Hz or 60 Hz) and the number of poles in the motor. This "on-off" operation is inefficient for applications where the demand fluctuates. For instance, a pump running at full speed when only half flow is required wastes enormous amounts of energy through throttling valves. A VFD solves this by allowing the motor to operate at any speed within its range, providing smooth acceleration and deceleration.

The working principle of a VFD is a fascinating interplay of power electronics and digital control, generally involving three main stages: conversion, filtering, and inversion.

The first stage is the Converter (Rectifier). The VFD takes the incoming fixed-frequency, fixed-voltage AC power from the utility grid. Using a diode bridge rectifier (or sometimes controlled thyristors), it converts this alternating current into direct current (DC). At this point, the electricity flows in one direction, but it is not yet ready to drive the motor efficiently because the DC voltage contains ripples.

This leads to the second stage: the DC Bus (Filter). The raw DC power passes through a filter circuit, typically consisting of large capacitors and sometimes inductors. The role of the DC bus is to smooth out the ripples from the rectifier, creating a stable and clean DC voltage. This stored energy acts as a reservoir, ensuring that the subsequent stage has a consistent power source to draw from, regardless of fluctuations in the input supply.

The final and most critical stage is the Inverter. Here, the stable DC power is converted back into AC power, but with a crucial difference: the output frequency and voltage are now variable. This is achieved using Insulated Gate Bipolar Transistors (IGBTs), which act as high-speed electronic switches. By turning these switches on and off in a specific sequence and duration, the VFD synthesizes an AC waveform. Modern VFDs utilize a technique called Pulse Width Modulation (PWM). Instead of producing a perfect sine wave immediately, the inverter generates a series of pulses. By varying the width of these pulses, the VFD simulates a sine wave of the desired frequency and voltage. Since the speed of an AC motor is directly proportional to the frequency of the supply, changing the frequency allows for precise speed control. Simultaneously, the VFD adjusts the voltage to maintain a constant voltage-to-frequency (V/f) ratio, ensuring the motor produces sufficient torque without overheating.

Beyond simple speed control, modern VFDs are equipped with sophisticated microprocessors that monitor motor performance in real-time. They can protect the motor from faults such as over-current, over-voltage, and overheating. Furthermore, they enable soft starting, which gradually ramps up the motor speed, eliminating the massive inrush currents and mechanical shocks associated with direct-on-line starting. This extends the lifespan of both the motor and the driven equipment, such as belts, gears, and bearings.

In conclusion, the industrial Variable Frequency Drive is a cornerstone of modern energy management and process optimization. By converting fixed AC power to DC and then inverting it back to variable AC through PWM technology, VFDs provide unmatched control over electric motors. As industries continue to face pressure to reduce carbon footprints and operational costs, the adoption of VFDs will remain a critical strategy for achieving sustainable and efficient industrial operations.
